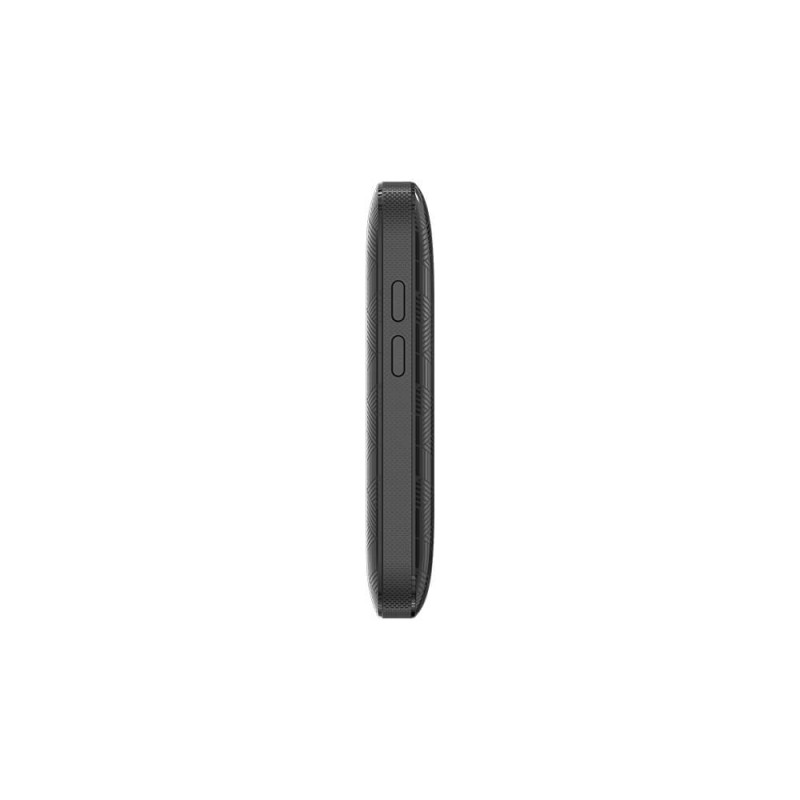

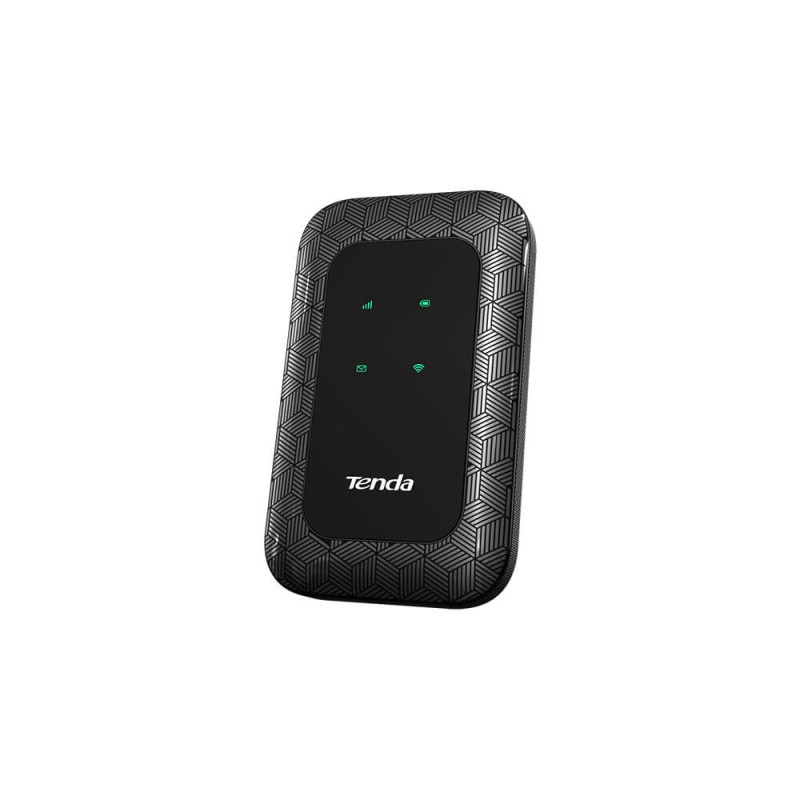

MODEM 4G TENDA 4G180

Hardware Specifications:

• 4G Category: LTE CAT.4
• Max 4G Speed:
  • Download: Up to 150 Mbps
  • Upload: Up to 50 Mbps
• 4G/3G Standards:
  • 4G: FDD LTE, TDD-LTE
  • 3G: WCDMA
• Supported Bands:
  • 4G FDD LTE: B1, B3, B5, B7, B8, B20
  • 4G TDD LTE: Band 38, Band 40
  • 3G WCDMA: B1, B5, B8

Wi-Fi Specifications:

• Wi-Fi Standards: 802.11b/g/n
• Wi-Fi Frequency: 2.4 GHz
• Wi-Fi Speed: Up to 150 Mbps
• Wi-Fi Transmit Power: Up to 20 dBm

Ports and Slots:

• USB Port: 1 x Micro USB
• SD Card Slot: 1 x Micro SD
• SIM Card Slot: 1 x Micro SIM
• Other: 1 x Reset hole

Buttons:

• Power On/Off
• WPS

Antenna Configuration:

• 2 Internal 4G/3G Antennas
• 2 Internal Wi-Fi Antennas

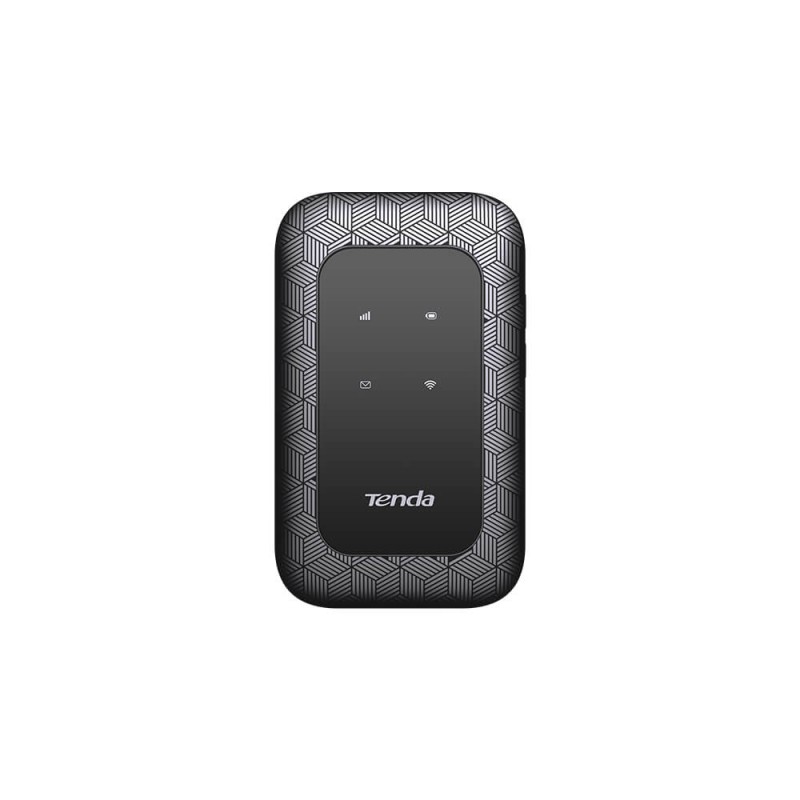

Indicators:

• 4G/3G Signal Strength (4 Bars)
• Internet Connectivity
• Battery Level
• SMS Status
• Wi-Fi Status

Battery Specifications:

• Type: Rechargeable Li-ion
• Capacity: 3.8V, 2100 mAh, 7.98 Wh
• Working Time: Up to 10 hours (depending on the network conditions)

Software Features:

• Extended Network Support:
  • 4G: FDD LTE, TDD LTE
  • 3G: HSPA+, WCDMA
• 4G/3G Functionalities:
  • Auto-APN, Auto Dial-Up
  • Roaming Support
  • SMS (Send/Receive/Delete), Phonebook
  • USSD, Data Limitation
  • Power Saving Mode, PIN Management
• Wi-Fi Features:
  • Broadcast and Hide Wi-Fi Network Name
  • Guest Network
  • Internet Wi-Fi (Wi-Fi Range Extension)

Certifications:

• Meets all relevant standards

Working Environment:

• Temperature Range: Suitable for varied temperature conditions
• Humidity: Operational under typical humidity levels

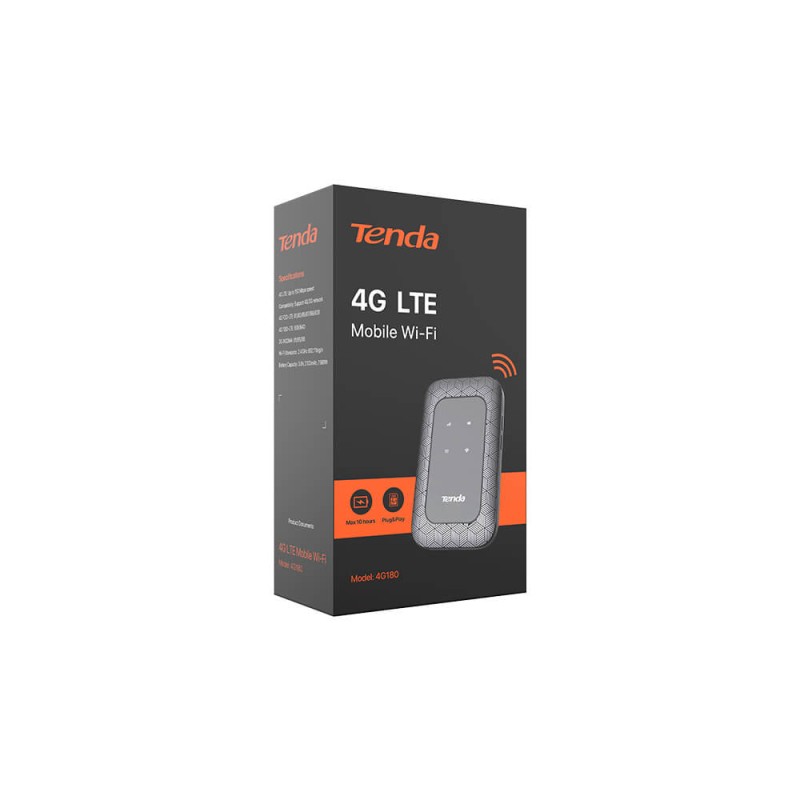

Package Contents:

• All essential components included
